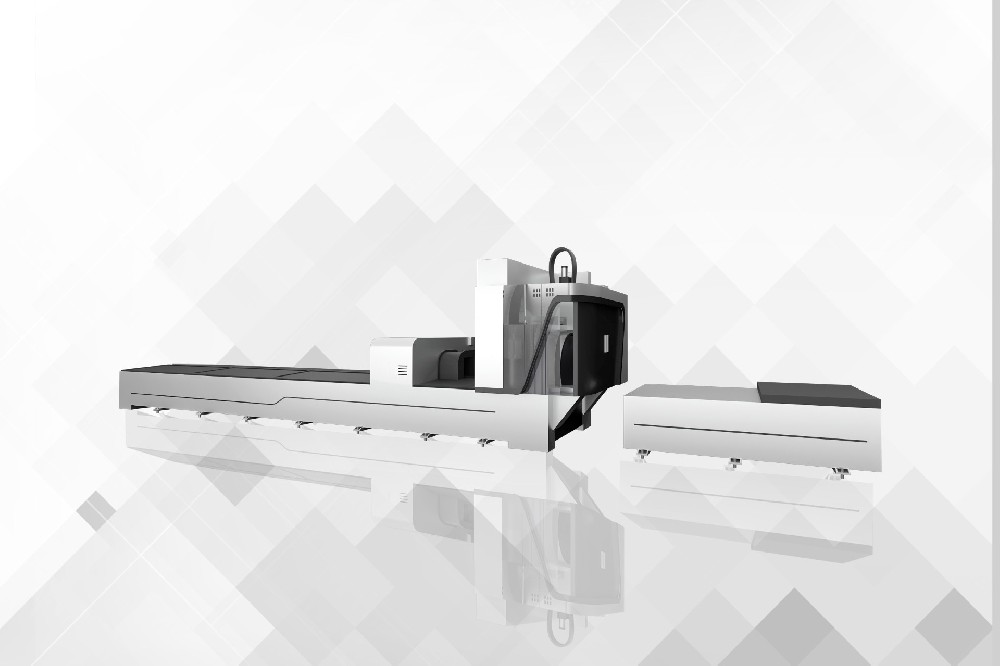

JSDH 60G 2000W~30000W专业切管机

JSDH 60G 2000W~30000W专业切管机

  • 所属分类:光纤激光切割机

  • 产品品牌:江苏大华
    加工定制:可
    产品产地:江苏

  • 联系电话:18952966888(光纤) 18913402888(裁床)



产品详情




技术参数 Technical Index

最大加工尺寸 Max. processing size                               6000mm

有效行程 Effective stroke                                                6000mm

定位精度 Positioning accuracy                                       ±0.05mm/m

重复定位精度 Repeat positioning accuracy                  ±0.05mm/m

最大运行速度 Max.operating speed                              50m/min~80m/min

最大切割厚度 Max.cutting depth                                     50mm

激光功率 Laser power                                                     选配1000W~20000W

激光波长 Laser wave length                                         1080nm

冷却方式 Cooling system                                             水冷(water)

电力需求 Power supply                                              380V/50Hz

整机功率 Gross power                                              15KW~150KW

外形尺寸 Dimension                                           7.9m×2m×2.3m


产品功能特性 Feature description

卓越的光束质量:聚焦光斑更小,切割线条更精细,工作效率更高,加工质量更好。

Excellent beam quality: smaller focusing spot, finer cutting line, higher working efficiency and better processing quality;

极高的切割速度:是同等功率CO2激光切割机的2倍

Extremely high cutting speed: twice as fast as an equivalent CO2 laser

极高的稳定性:采用世界顶级的光纤激光器,性能稳定,关键部件使用寿命可达10万小时

Extremely high stability: the world's top fiber laser, stable performance, the service life of key components can reach 100,000 hours;

极高的电光转换效率:光纤激光切割机比CO2激光切割机电光转换效率高2倍,节能环保;

Extremely high electro-optic conversion efficiency: the electro-optic conversion efficiency of fiber optic laser cutting machine is 2 times higher than that of CO2 laser cutting machine, saving energy and environmental protection;

极低的使用成本:整机耗电量仅为同类CO2激光切割机的20-30%。

Extremely low use cost: the power consumption of the whole machine is only 20-30% of that of similar CO2 laser cutting machines;

极低的维护成本:无激光器工作气体;光纤传输,无需反射镜片;可节约大量维护成本

Extremely low maintenance cost: no laser working gas; Fiber optic transmission, no reflective lens; Cansave a lot of maintenance costs;

产品操作维护方便:光纤传输,无需调整光路

Easy operation and maintenance: optical fiber transmission, no need to adjust the optical path

超强的柔性导光效果:体积小巧,结构紧凑,易于柔性加工要求。

Super flexible light guide effect: small size, compact structure, easy to flexible processing requirements.
