JSDH3015G-1000W光纤激光切割机

JSDH3015G-1000W光纤激光切割机

  • 所属分类:光纤激光切割机

  • 产品品牌:江苏大华
    加工定制:可
    产品产地:江苏

  • 联系电话:18952966888(光纤) 18913402888(裁床)



产品详情

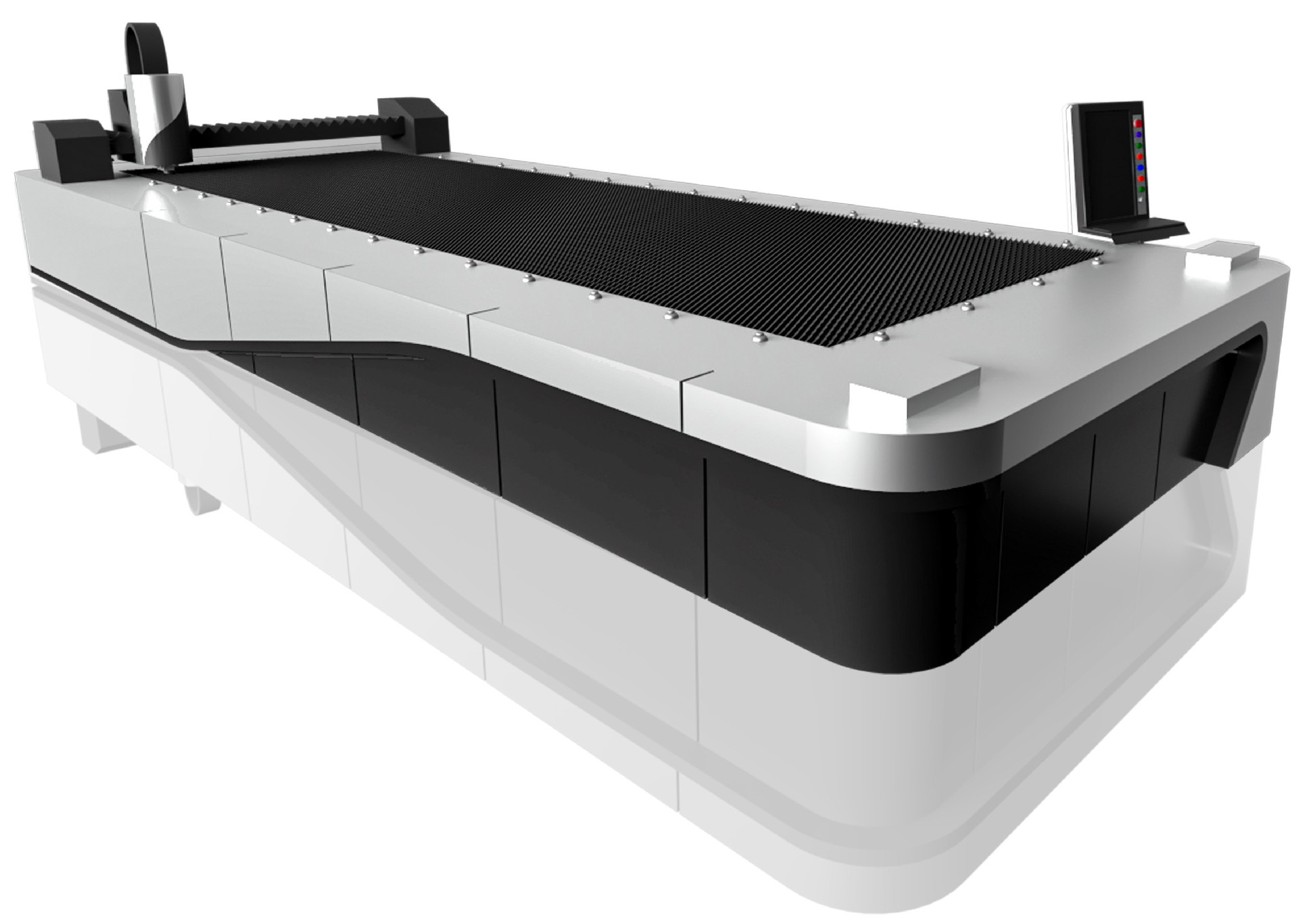

6.jpgJSDH3015G-1000W      光纤激光切割机
                                                             Optical Fiber Laser Cutting Machine

技术参数 /Technical Index

最大加工尺寸 /Max. processing size3000mm×1500mm
有效行程 /Effective strokeX轴:3020mm Y轴:1520mm Z轴:110mm
定位精度 /Positioning accuracy±0.03mm
重复定位精度 /Repeat positioning accuracy±0.02mm
最大运行速度 /Max.operating speed900,000 mm/min
最大切割厚度 /Max.cutting depth6mm(碳钢) 3mm(不锈钢)
激光功率 /Laser power500W(选配300W-2000W)
激光波长 /Laser wave length1080nm
冷却方式 /Cooling system水冷
电力需求 /Power supply220V/50Hz
整机功率 /Gross power6KW
整机重量 /Gross weight3.5T
最大承载 /Max. load bearing800KG
外形尺寸 /Dimension4m×2.5m×1.5m


切割工艺参数/Cutting parameters

材料 /Material碳钢 /Carbon steel 不锈钢 /Stainless steel
辅助气体/Auxiliary gas氧气 /Oxygen  氮气 /Nitrogen
厚度 /Depth(mm)1234560.5123
速度/Speed (m/min)8.4~123.5~4.5 1.6~2.41.2~1.5 0.8~1.20.72~0.96>18 8.4~121.8~2.40.84~1.2


产品功能特性 / Feature description

龙门双驱结构,高速运动,稳定可靠,机身底座整体加工,机床刚性好,精度高

进口行星减速机,配置日本安川伺服电机,采用进口高精级齿轮齿条传动,精度高,速度比普通机快三倍左右

整体铝合金横梁结构,兼顾刚性和质量轻的优点,响应快,动态性能好

一流品质光纤激光器,多年工业应用,寿命长,免维护,稳定可靠,机电全优设计,精选名优品牌电器配件

机床电气部件均采用法国施耐德,日本欧姆龙等进口原件,采用进口高精密导轨,保证机器的精度并可承受大负荷

高精密激光切割头,进口光学镜片,带保护片,调焦便捷,提高切割效果;

调高器采用BCS100独立式电容调高器,速度位置双闭环算法控制,运行速度和精度等性能均明显优于国内外同类产品

数控系统采用当今主流的FSCUT2000激光切割系统,配合新一代CypCut激光切割软件,支持DXF/PLT/AI/DST等多种

格式输入,具有强大的图形绘制和编辑功能,切割工艺数据保存调用功能,具有断点记忆、断电续雕、加工时间预测等

功能,保证在意外断电或隔天的情况下继续加工,操作简单易学

气体控制部分采用日本SMC、意大利CAMOZZI、台湾AirTAC气动元件;由比例阀控制气体的流量,气流稳定;切不同

板材时,会根据工艺库里的指令自动切换空气、氧气、氮气三种气体及气压,无需手动调节

机床加油润滑系统,运行更为平稳,寿命长

可根据客户的特殊要求,量身订做各种尺寸和具体要求。

Portal frame double drive structure, high speed moving stably,whole body, processing and high precision.

Imported planetary reducer, Japan Yaskawa servo motor configuration, high precision gear rack drive, three times faster than

ordinary machine.

Monolithic aluminum alloy beam structure, advantages of both rigidity and light weight, fast response, good dynamic

performance.

First class quality fiber laser, many years of industrial applications, long life, maintenance free, stable and reliable, excellent

mechanical and electrical design, selection of excellent brands of electrical accessories, failure rate to a minimum.

The electrical components of machine tools are used in France Schneider, Japan OMRON and other imported original.

Imported high precision guide rail to ensure the accuracy of the machine and withstand large loads.

High precision laser cutting head, imported optical lens , with protective mirror, focusing convenient, cutting perfect.

The BCS100 Independent type capacitor is used to adjust the high, speed position double closed loop algorithm control,

operating speed and accuracy of performance are significantly better than similar products at home and abroad.

Numerical control system adopts the mainstream FSCUT2000 laser cutting system, and the latest generation of CypCut laser

cutting software, graphic supported by DXF/PLT/AI/DST …, powerful graphics grendering and editing functions, cutting

processing data save call function, breakpoint memory, power cut continued carving, processing time prediction and other

functions.

Gas control part of the use of SMC, Italy CAMOZZI, Taiwan AirTAC pneumatic components, flow of gas by proportional

valve, air flow stability.While different plate cutting, according to process library instruction automatic switchover air, oxygen,

nitrogen, and air pressure, without manual adjustment.

Machine tool lubrication system, running more stable, long life.

Speicial size of working table customized available.
适用材料及行业/Applicable material /industries

可切割各种金属板材,主要适用于:碳钢、不锈钢、镀锌板、锰钢、硅钢、合金、稀有金属等材质的快速切割

广泛应用于:机械零件、钣金机柜、灯饰五金、厨房电器、汽车配件、广告字牌、锯片、眼镜、展示器材等各

种金属制造加工行业。

Material: Carbon steel ,stainless steel, galvanized sheet, manganese steel, silicium steel,alloy, rare metal etc..

Industries: Machinery part, sheet-metal equipment cabinet,lighting hardware, kitchen appliance, advertising,

Saws, glasses, display material etc…
